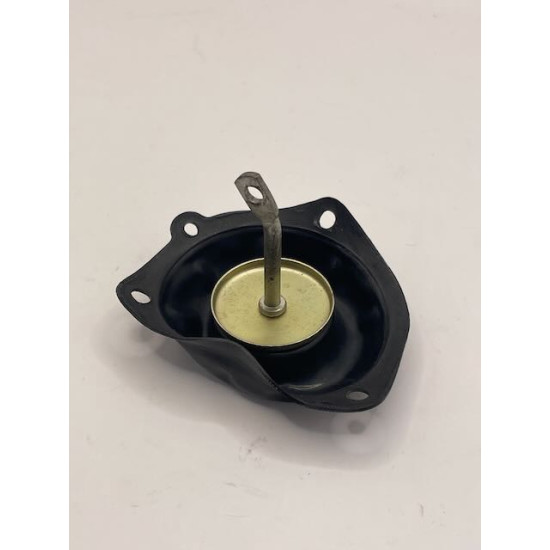

Nikki secondary diaphragm [NK566SDL]

Nikki secondary diaphragm [NK566SDL]

Stem length 35mm from base to hole centre

As used in:

Datsun 180B; 200B; P610; N810; 1770cc. 1952 cc. engines 1976-81 with DCH3402 carb

Datsun  240C; 230; with L24-2393 cc engine 1966-71 with DAH342 carb

Nissan 240K; C110; with L24-2393 cc engine 4/1976-78 with DAH342 carb

Nissan 260C; 230; 330; with L24-2393 cc engine 1973 on with DAH342 carb

Nissan 280C; 330; 430; with L28-2753 cc engine 5/1981-83 with DAF342 carb

Nissan Bluebird Series 1; 2; 3; J910; with 1952; 1974 cc engines 1981 on with DCR340/342 carbs

Nissan Skyline C210 with L24-2393 cc engine 1978 on with DAH342 carb

Nissan Stanza A10 with L16S-1595 cc engine 10/1978-9/85 with 21A304 carb

Nissan 1500 Ute; 620 with J15-1483 cc engine 8/1975 on with DCH340 carb

Nissan Cabstar with Z20-1952 cc engine 1982 on

Nissan Homer F20 with H20-1982 cc engine 1975 on with 21A304 carb

Nissan King Cab 720; 4WD with L18-1770 cc engine 1979-85 with DCH340 carb

NIssan Navara 4 X 4 with Z24-2389 cc engine to 1986

Nissan Navara D21 with Z20-1952 cc engine 1985 on

Nissan Van; Bus E20 with H20-1982 cc engine 2/1977-80 with 21A304 carb

Nissan Pathfinder WD21; 4WD with Z24-2389 cc engine to 11/1987

Nissan Patrol MQ160; 4WD with L28-2753 cc engine 1981-87

Nissan Urvan with J16-1567; H20-1952 cc engines 1981 on with DCH340 carb

Nissan Urvan E23 with Z20-1952 cc engine 1982 on

TCM forklift FG40 N5 Nissan P series engine and Hitachi DAF342 carburettor

**check the stem length - there are two versions of this diaphragm**
