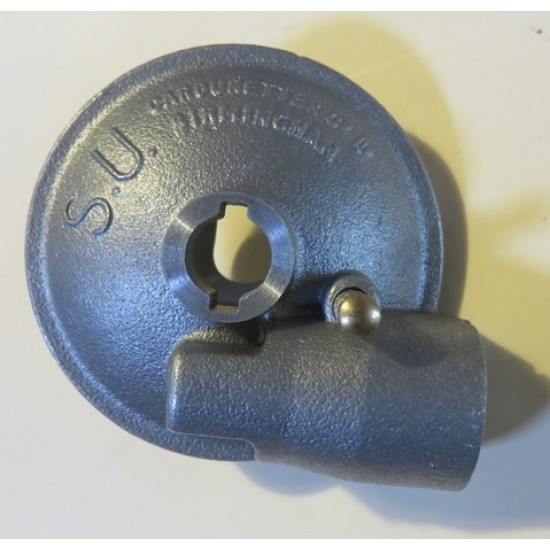

SU Carburettor Float Bowl Lid T2 L/H 2 3/8" Dia inc brass Tickler (AUE998)

SU Carburettor Float Bowl Lid     P/N AUE998

Size: T2; 2-3/8" Diameter Bowl

Left Hand Type  Later Style Lid fitted with polished Brass Tickler Pin, complete with Needle and Seat, Float Fork & bowl gasket

Used with Banjo & Bolt, where an overflow pipe is fitted

Later Style, zinc alloy casting with raised lettering "S.U. CARBURETTOR Co. Ltd. BIRMINGHAM"

Casting number 4260

On this Lid; AUE998 where the holding bolt seats, the slots are closed off to the air and usually the alternate long holding bolt [AUC1867]
is used in conjunction with the serrated fibre washer [AUC1928] against the lid,
an overflow pipe is fitted and alloy washer AUC1557 is fitted above the pipe.
