Holley Red Fuel Pump [12-801-1]

Holley Red Fuel Pump [12-801-1]

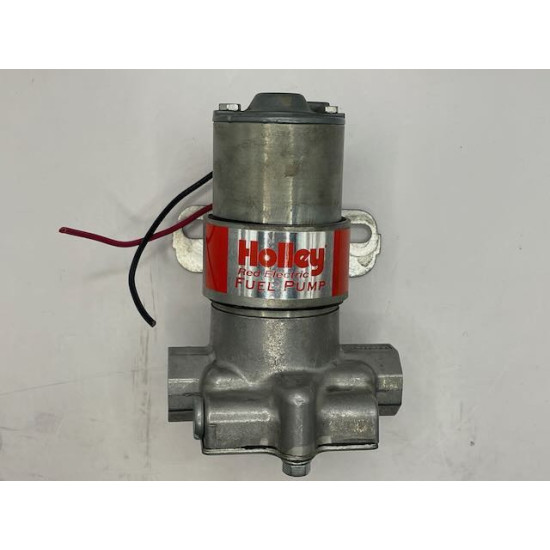

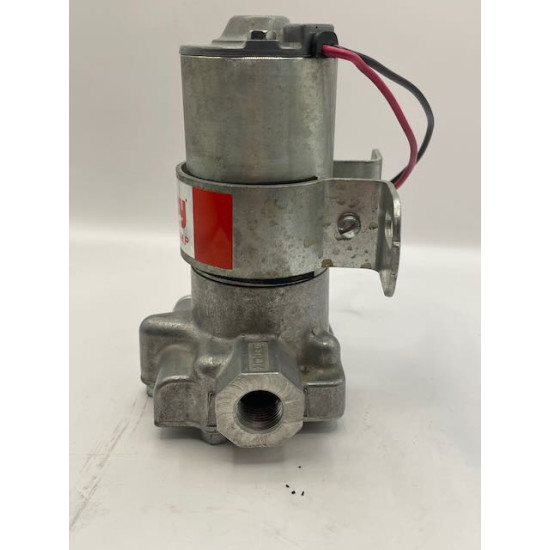

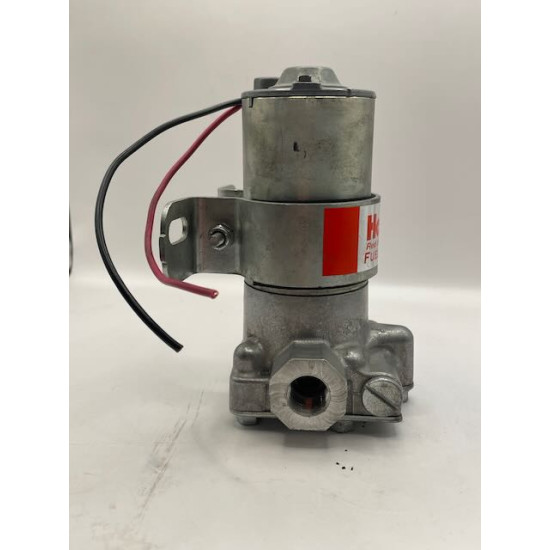

Genuine Holley Red 97gph 12v fuel pump

We picked this pump up in a box of parts from another carby guy.  It looks to be new or near new.  We've tested it at it works fine, but because it doesn't have a box, we've marked it down to half price.

No warranty on this one sorry, but it is cheap for a genuine Holley.

Features:

• Tumble polished billet look
• Lower housing casting designed for enhanced fuel flow
• Maximum pressure is 7 psi
• Motor draws 2 amps current
• Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
• Constant fuel flow with no pulsation
• Improved design for street/strip applications
• Not designed to be used on aircraft of any type
• Distinctive “Red” logo
• Flows 97 GPH (free flow)
• Flows 71 GPH at 4 psi
• regulator is not required
• Has externally accessible pressure relief valve (max 7 psi)
• Rotor/vane pump design is more tolerant of contaminated fuels
• Weighs only 2.88 lbs
• Not designed or recommended for use with fuel injection systems
• Includes mounting bracket
• Repair kits are readily available
• Can be serviced from the pump end
• Not compatible with alcohol or methanol fuels
• Use of safety shut-off switch, P/N 12-810, strongly recommended
