Fuel Pump Seal for pull-rod AC & Goss mechanical pumps [S65PE]

Fuel Pump Seal for pull-rod AC & Goss pumps     P/N S65PE

Use with Keeper P/N K65PE sold seperately

Seal O.D. of flange 30mm [1.18”]

Seal flange thickness 4mm [0.16”]

Seal height from face of flange to top 11mm [0.42”]

seal central extension protrudes below lower flange face by 5mm [0.2”]

NOTE: Several different seals are used in these pumps.

Check photos for your requirements.

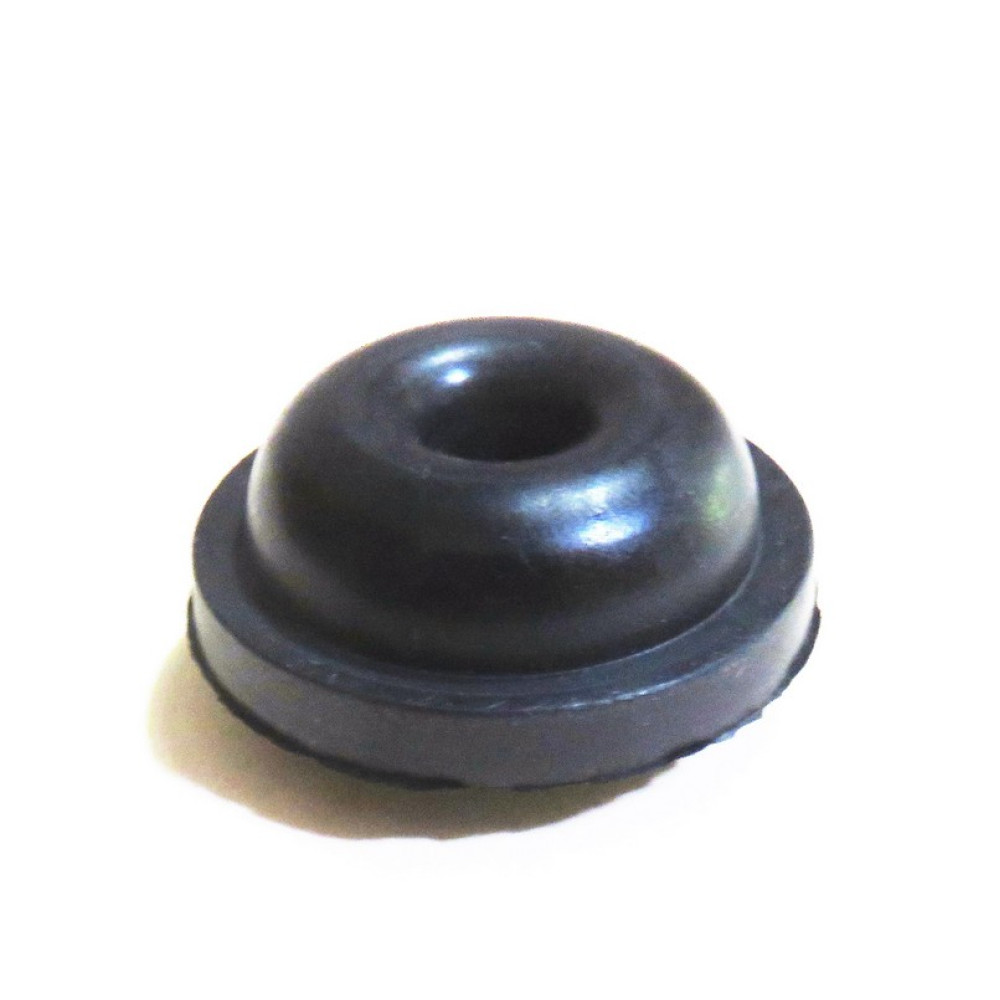

This seal has central extension surrounding the pull-rod – see photo below
