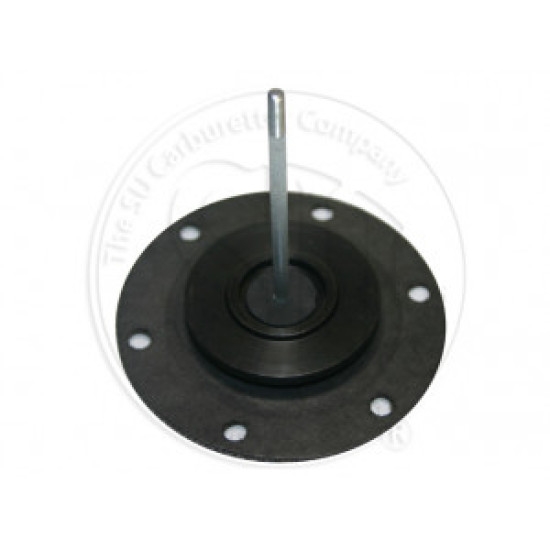

SU Fuel Pump Diaphragm Post 1985 LP Dual LP Short Spindle 2-3/8" (2.375") (AUB6082)

SU Fuel Pump Diaphragm  P/N AUB6082

As used in:

LP & Dual LP POST-1985 Pumps,

This diaphragm has the Short Spindle; 2-3/8" long (2.375")

Two layers of neoprene material with NO stiffening plate above diaphragm [below armature plate]

Suits Coil Housing P/Ns. AUB6080 (post Sept 85)

To determine which pump you have, see the Pump Body No. Stamped on housing where the pipe fittings attach

LP & HP Pump Body No. AUA4080

Dual LP & HP Pump Body No. AUA1480

Diaphragm number AUB6097 can now be used in these pumps as alternative [has stiffening plate]
