Autolite 1100 1101 Overhaul Kit Falcon XP 170 C.I. '65-66 D Series 6 cyl Truck [AK436]

Autolite 1100; 1101 Overhaul Kit = FD303

Equivalent to Fuelmiser FD-303

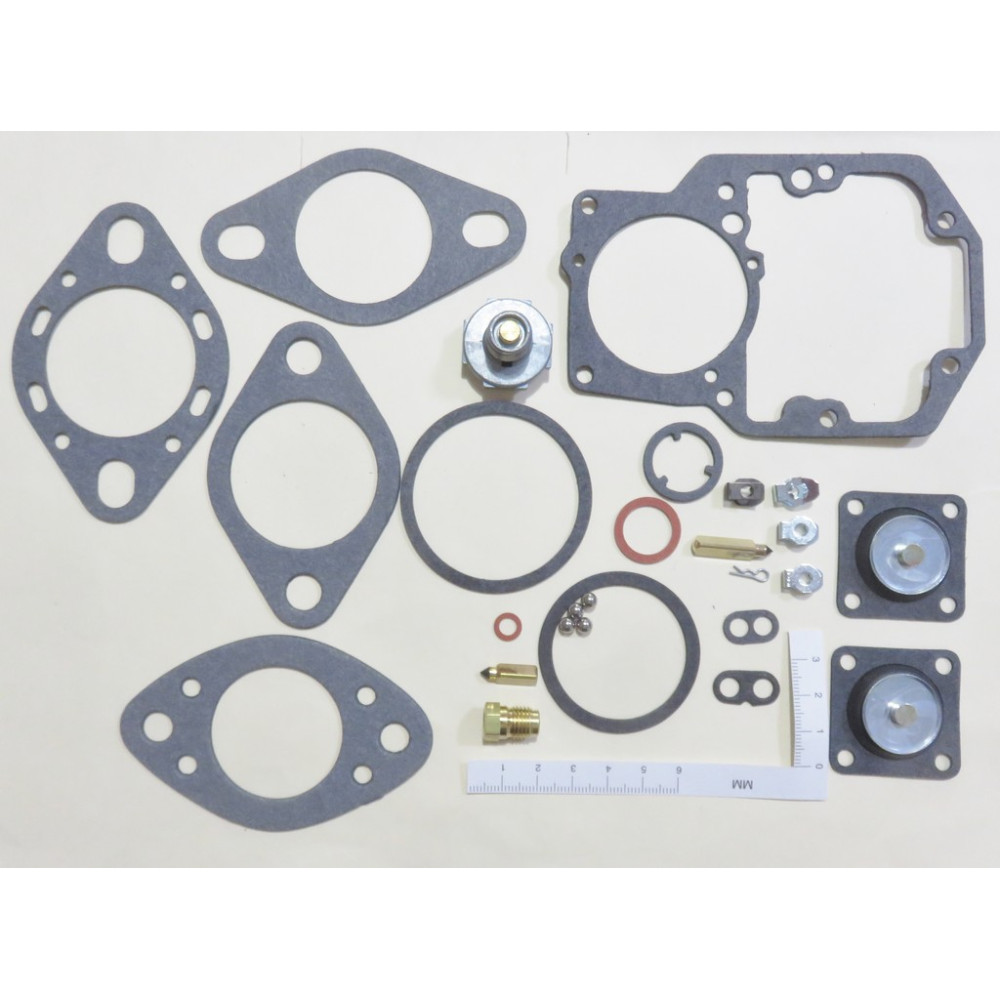

This kit suits ALL Autolite 1100 and 1101 carburettors 1953 to 1969; includes
Spark Control Valve, pump diaphragm, dashpot diaphragm, check weight, discharge ball, etc

As fitted to:

Ford XP Falcon; Fairmont; 170 C.I. 1965 to 1966. Australian models

Ford Comet; Falcon; Fairlane; Montego; Mustang; 6 cyl. 200 CI. 1968  Carb Nos C80F-A; C80F-B USA

Ford Falcon; Mustang; 6 cyl. 200 CI. 1969 Carb Nos C90F-B; C80F-B. USA

Ford 240 CI. 6 cyl. 1968 Carb No C80AF-E. USA

Ford Falcon; Fairlane; Montego; Mustang 250 CI. 1969 Carb Nos C90F-B; C90F-A; C90F-J; C90-F-K. USA

Ford D Series 300 Commercial 4916cc. 6 cyl 1965 on. AUST

Ford Ag engines 240; 300 ci. 6 cyl.

Ford Truck 144; 170; 200; 223; 260 ci. 6 cyl. 1963-67 USA

Ford Truck 240; 300 ci. 6 cyl. 1965-69 USA

Ford/ Mercury 144; 170; 200; 223; 240; 250 ci. 6 cyl. 1963-69 USA

Kit made in USA, absolute top quality.

Includes all parts required for complete overhaul of this Autolite/Ford carburettor
Instruction sheet enclosed.

The 1101 uses a longer needle which is also  included, but the seat is re-used.

SEE ALSO OUR AUTOLITE 1100 1101 HARDWARE REFURB KIT which includes SCREWS, PLATES, WASHERS, BUSHES, ETC  P/N AHK1058

Following is list of carb numbers this kit also suits:

C3AF-AC3AF-B C3AF-BL C3AF-BM C3AF-BN C3AF-BR C3AF-BS C3AF-BT C3AF-C C3AF-D C3AF-L C3AF-M C3AF-Y
C3AF-Z C3AZ-A C3AZ-B C3AZ-C C3AZ-D, C3DF-A C3DF-B C3DF-R C3DF-S C3DZ-A C3DZ-B C3GF-A C3GF-B C3GF-C
C3GF-D C3GF-G C3GF-H C3GY-A C3GY-B C3GY-H C3OF-A C3OF-AA C3OF-AK, C3OF-AL C3OF-AM C3OF-B C3PF-A
C3PF-B C3PF-C C3TF-A C3TF-B C3TF-C C3TF-D C3TF-E C3TF-F C3TF-G C3TF-T C3TF-U C3TF-V C3TF-Y C3TF-Z
C3UF-A C3UF-B C3UF-F C3UF-G C3YF-A C3YF-B C3YF-E C3YF-F C3YF-G C3YF-H C3YY-A C3YY-B C3YY-C C3YY-D
C4AF-DM C4AF-DN C4AF-DR C4AF-DS, C4AF-ED C4AF-EE C4AF-L C4AF-M C4AF-S C4AF-T C4DF-AA C4DF-G C4DF-H
C4DF-U C4DF-V C4DF-Z C4GF-A C4GF-AH C4GF-AR C4GF-B C4GF-C, C4OF-BA C4OF-BB C4OF-BD C4OF-BE C4OF-BF
C4OF-BJ C4OF-BK C4OF-BL C4OF-BM C4OF-F C4OF-G C4OF-H C4OF-M C4TF-AV C4TF-AY C4TF-AZ,C4TF-BA C4TF-BB
C4TF-BC C4TF-BD C4TF-BE C4TF-BF C4TF-BG C4TF-BH C4TF-BJ C4TF-BK C4TF-BL C4TF-E C4TF-K C4TF-L C4UF-A
C4UF-C C4UF-D, C4UF-G C4UF-H C4UF-J C4UF-K C4UF-L C4UF-R C4UF-S C4UF-T C4ZF-A C4ZF-B C4ZF-J C4ZF-K
C4ZF-L C4ZF-M C5AF-AF C5AF-AG C5AF-BN C5AF-T, C5AF-U C5AF-V C5AF-Y C5DF-E C5DF-F C5DF-G C5DF-H C5DF-K
C5DF-L C5DF-M C5OF-AC C5OF-E C5OF-F C5OF-H C5OF-N C5OF-R C5OF-S C5OF-Y, C5OF-Z C5PE-E C5PE-F C5PF-G
C5TF-AC C5TF-AH C5TF-F C5TF-G C5TF-H C5TF-J C5TF-M C5TF-N C5TF-R C5UF-A C5UF-B C5UF-C C5UF-D C5UF-E
C5UF-F C5UF-H C5UF-L C5UF-M C6AF-AK C6AF-BL C6AF-BM C6AF-M C6AF-N C6AF-R C6AF-S C6AF-V C6AF-Y C6DF-C
C6DF-D C6DF-M C6DF-N C6DF-R, C6DF-S C6DZ-A C6OF-AB C6OF-AC C6OF-AD C6OF-AE C6OF-F C6OF-G C6OZ-C
C6PF-BL C6PF-E C6PF-G C6PF-J C6PF-K C6PF-V C6TF-D C6TF-E C6TF-F,C6TF-G C6TF-H C6TF-J C6TF-K C6TF-L
C6TF-M C6TF-N C6UF-A C6UF-B C6UF-C C6UF-D C6UF-G C6UF-H C6UF-S C6UF-T C6UF-U C6UF-V C7AF-AA C7AF-AB
C7DF-J C7DF-K C7OF-N C7OF-R C7OZ-J C7TF-K C7TF-L C7TF-M C7TF-N C7TF-R C7TF-S C7TF-T C7UF-A C7UF-B C7UF-C
C7UF-D C7UF-E C7UF-F C7UF-G, C7UF-H C7UF-K C8AF-E C8AF-F C8AF-G C8AF-H C8AF-J C8DF-C C8DF-D C8OF-A
C8OF-B C8OF-E C8OF-F C8PF-C C8PF-D C8PF-E C8PF-F C8PF-G C8PF-H, C8PF-J C8PF-K C8PF-L C8PF-M C8PF-N
C8PF-R C8PF-S C8TF-C C8TF-E C8TF-F C8TF-G C8TF-H C8TF-J C8TF-K C8TF-L C8TF-M C8TF-R C8TF-S C8TF-T
C8TF-U C8TZ-C C8TZ-E C8TZ-F C8TZ-G C8TZ-R C8TZ-S C8UF-R C8UF-S C9DF-B C9OF-A C9OF-B C9OF-J C9OF-K
C9OF-M C9TF-G C9TF-H C9TF-N C9TF-R
